Automatic Filling and Pump Capping Machine

Automatic filling and pump capping machine ,The singe (double) head automatic ointment filling machine adopts programmable logic controller (PLC) human and machine interface technology, equipped with imported photoelectric track switch from Korea, which is suitable for filling ointment products in the industries such as ointment, oil products, syrup, shampoo, bechamel and fruit juice etc. The filling nozzle will be automatically inserted into the bottle to carry out the filling and then rapidly ascend, which can reduce the air bubbles. The product integrates electric and pneumatic functions into one, with reasonable design, stable performance, accurate quantity, glass table surface, automatic bottle feeding, steady operation without noise, electric speed control to the filling speed and filling volume and convenient maintenance and cleaning. The new type filling equipment is the best choice for the realization of automatic production.

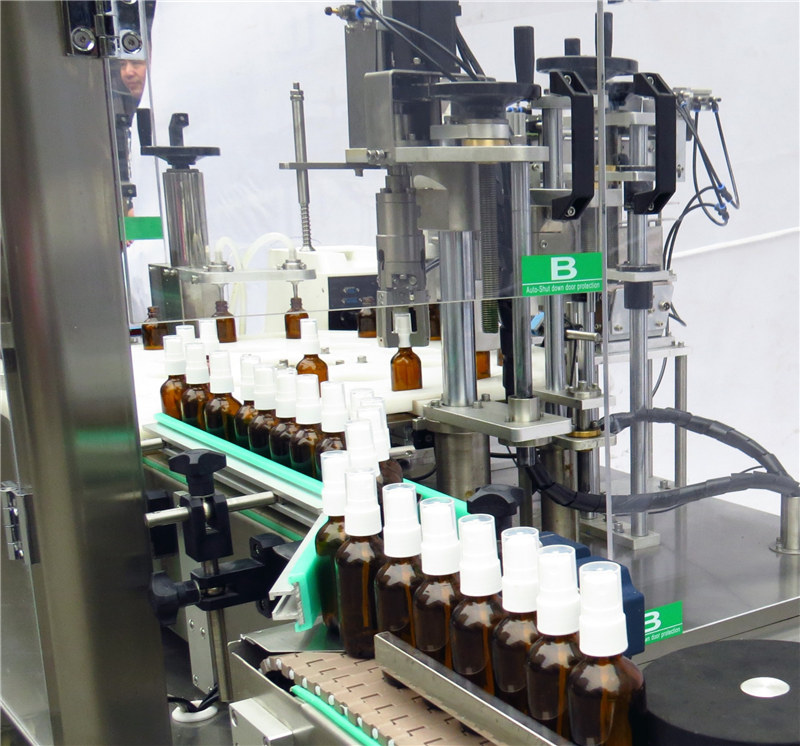

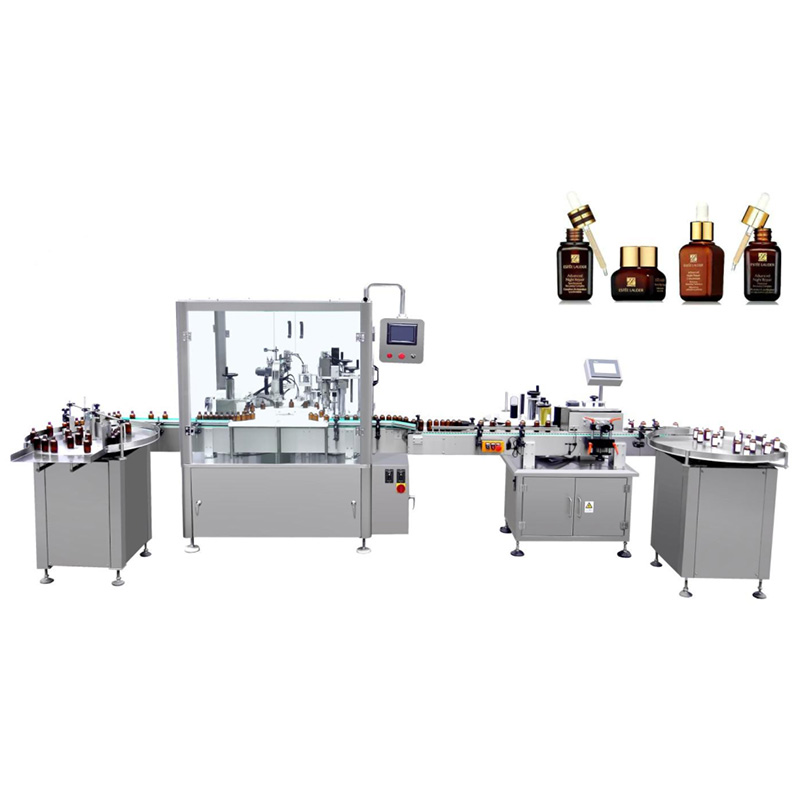

This sprayer pump, glass dropper bottle filling and capping machine includes the turn table feeding bottle, automatic filling, automatic feeding sprayer pumps(glass dropper),capping, labelling and bottle collection table.

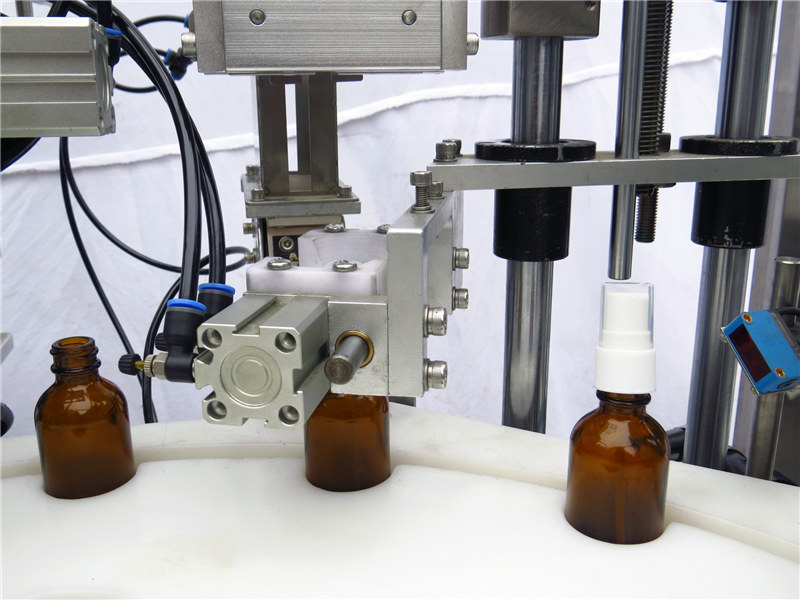

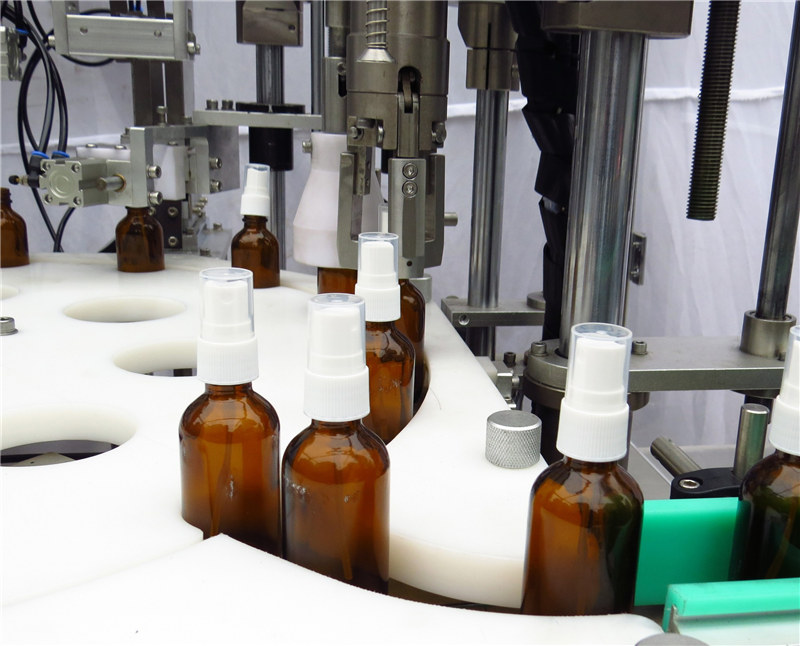

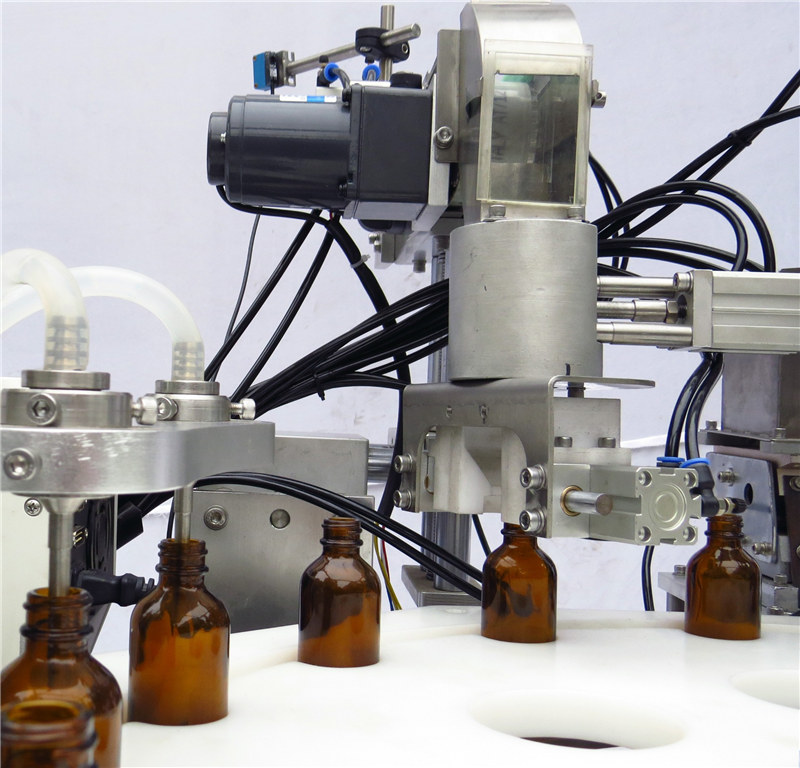

This production consists of bottle feeding table, peristaltic pump filling, feeding sprayer pump(glass dropper),pre-capping,servo capping, labelling and bottle collection table.

The singe (double) head automatic ointment filling machine adopts programmable logic controller (PLC) human and machine interface technology, equipped with imported photoelectric track switch from Korea, which is suitable for filling ointment products in the industries such as ointment, oil products, syrup, shampoo, bechamel and fruit juice etc. The filling nozzle will be automatically inserted into the bottle to carry out the filling and then rapidly ascend, which can reduce the air bubbles. The product integrates electric and pneumatic functions into one, with reasonable design, stable performance, accurate quantity, glass table surface, automatic bottle feeding, steady operation without noise, electric speed control to the filling speed and filling volume and convenient maintenance and cleaning. The new type filling equipment is the best choice for the realization of automatic production.

Specification:

Filling volume:5-100ml

Speed:30-40BPM

Filling accuracy: ≥99％

Cap feeding rate: ≥99％

Capping rate: ≥99％

Power: 2KW 220V

Labelling accuracy: ±1MM

Automatic filling capping machine (overflow filler) can do automatic bottle feeding, automatic liquid filling, automatic cap feeding, cap placing, cap screwing and automatic bottle out-feeding procedure, and the machine can be applied to round and oval round bottle container that usually be used on daily cleaning supplies such as shampoo, shower gel, moisturizing cream, perfume, laundry detergent and dishwashing. Because the oval bottles have larger surface that can be used on product feature demonstration, also, its lively shape makes it popular and becomes common packaging choice. Automatic Filling Capping machine is designed for oval bottles which easy to overturn while conveying, providing stable and balanced transportation for many sizes/ heights of bottle. The filling station has multiple filling nozzles and dual-track conveying which are designed for maintaining the continuous production and increasing the efficiency, also, the distance between two bottles are remained properly so that there is no interference in liquid filling procedure. After filling procedure, the bottles will be conveyed to the cap-placing machine, and start automatic cap placing, cap pressing and cap screwing process simultaneously. The 3 in 1 machine design of cap-sorting, cap-pressing and cap-screwing not only shorten the process time but also saving the space in production area. The automatic filling capping line will correct the system automatically according to the central spot of the container while doing liquid filling and cap screwing procedure. If the production line is connected to the labeler, the production line can correct or maintain the specific transporting angle. Every mechanism was designed after full consideration in production details, making the production process fluent and efficient.

How could the Automatic Filling Capping Line be used on different size of round and oval round bottle?

Automatic liquid filling capping machine can be applied to low to medium concentrated liquid. In addition, when the container is oval bottle, not a common round bottle, it would be more challenging to design a full automatic bottle unscrambler, conveyor, filling machine, capping machine and labeling machine because unlike a common round bottle, the oval one could be more various in dimension and shape. (oval bottle has both short and long axes that causing more variety so sometimes cannot use common design for bottle unscrambling, conveying, positioning, and bottle out-feeding purpose.) VKPAK will customize the filling cappin machine design according to the shape of the bottle you’d like to use, providing oval bottle automatic filling capping modules that have advantage of universal appliance and can be applied to different size of round/oval bottles. The mechanical design focused on the commonality of the module, providing the easy-changing and simple-to-adjust method that means convenience in operation and Full automatic high-speed liquid filling capping production line.
