Automatic 6 Wheels Spindle Capping Machine

Automatic Spindle Screw Capping Machine
Description:

VKPAK spindle capping machine is suitable for spindle screw caps, locked caps, and spray caps and so on. The caps can be metal, plastic.

1. We adopt the mode of 'one motor controls one capping wheel', which can ensure the machine to work stably and keep consistent torque under long term working condition.

2. The clamping belts can be adjusted separately, which allow the machine to be suitable for capping bottles with various heights and shapes.

3. If you choose the optional cap guiding system together with the machine, it will then also fit for pump caps.

4. The convenient construction adjustment system is equipped with precise ruler and counter.

5. The mainframe can be lifted and descended automatically by a motor.
Automatic 6 Wheels Spindle Capping Machine

NAME MODELFull Automatic spindle capping machine
Capacity0~200b/m（subject to bottles and cap size）
Bottle and cap diameterΦ20～120
Bottle Height40~350mm
Spindle capping machine dimensionL1060*W896*H1620mm
VoltageAC 220V 50Hz
Power1100W
Weight500kg
Cap Feed systemElevator feederVibrator feeding
DimensionL880×W1000×H2600mm800×600×1700mm

1. Automatic spindle capping machine is suitable for both plastic and metal caps screwing and spindle

2. It is adjustable for different size of bottles and caps without special tools and changing any parts

3. High speed and working stably

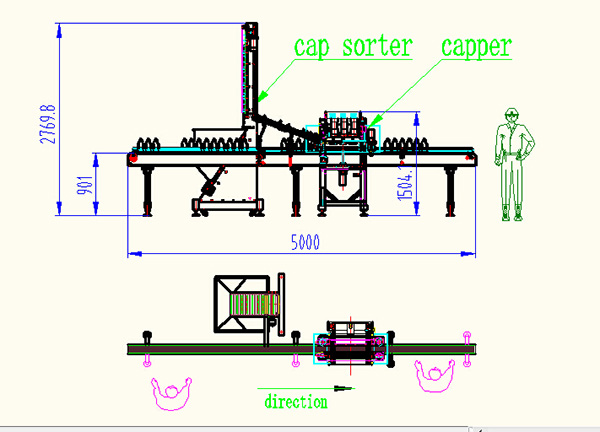

This automatic capping machine is used for closing screw caps, it is made up by 3 parts: cap feeding system, cap loading system and cap closing system.

Brief Introduction:

  • This automatic capping machine is used for closing screw caps, it is made up by 3 parts: cap feeding system, cap loading system and cap closing system.
  • Linear structure which is flexible to run different size bottles without change parts.
  • Cap feeding system will be made according to cap sample( by vibrating bowl or cap elevator) .
  • It is also ok for closing pump cap, trigger cap (cap feeding and loading have to be done by hand).
  • PLC control system and touch screen is available for your option.
  • Simple system and easy operation, the machine is widely used on foodstuff, pharmacy, cosmetic, daily chemical, fertilizer and chemical industries.
